Chevy 88-98, Shackle Hanger Mount, Inside Frame, Rear of Front Axle w/ 5" Shackles

WFO SH-CHEVY-8898-KIT-5
Was: $385.00
Sale: $338.80
Save: 12%
Save: $46.20
Qty:

Description

This is our Inside Frame Shackle Hanger Kit for the rear of the front axle. This kit only works with axles with a center perch width of 31.5". For instance, it will work with a '78-'79 F250 D44 axle or a '78-'79 F350 D60. This kit is designed to work with 52" or 56" long, 2.5" wide leaf springs with our Chevy '88-'98 Front Box Drop.

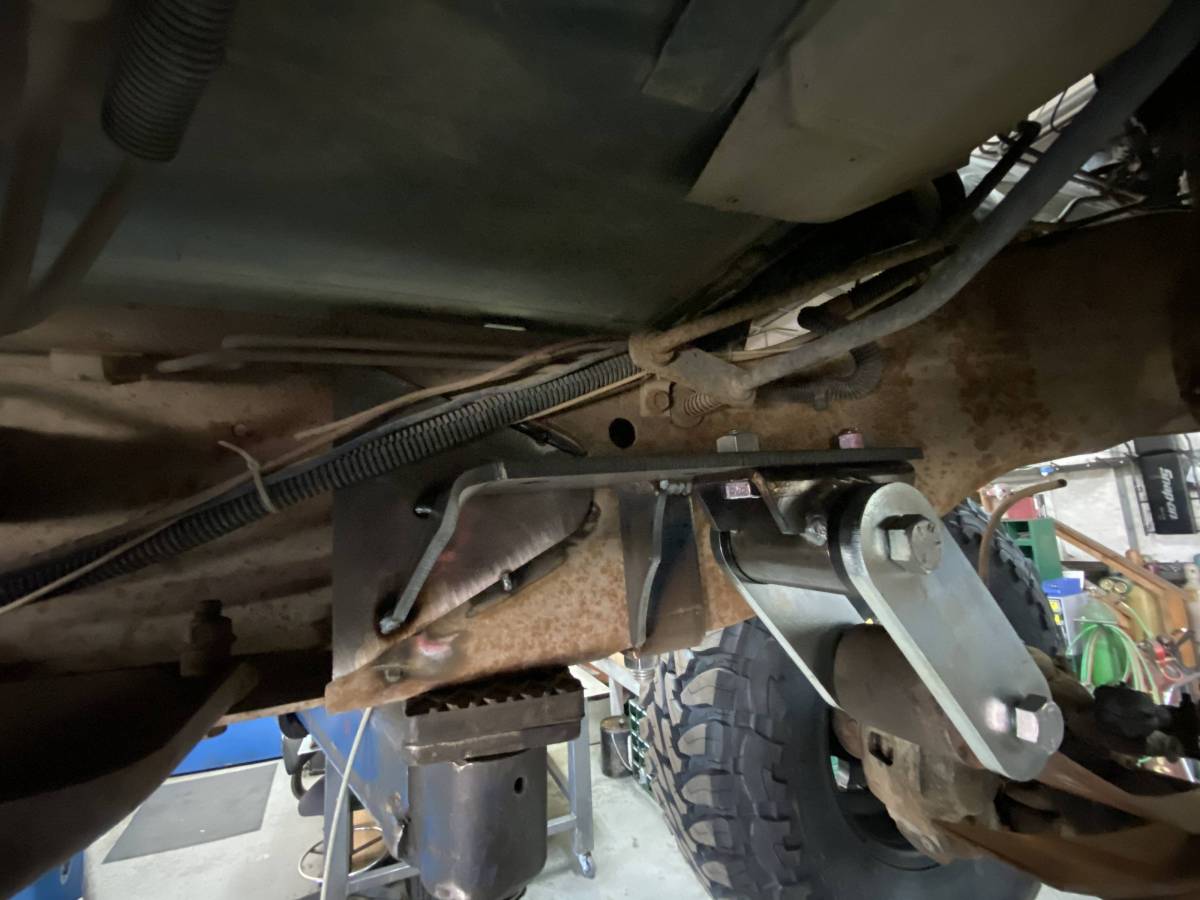

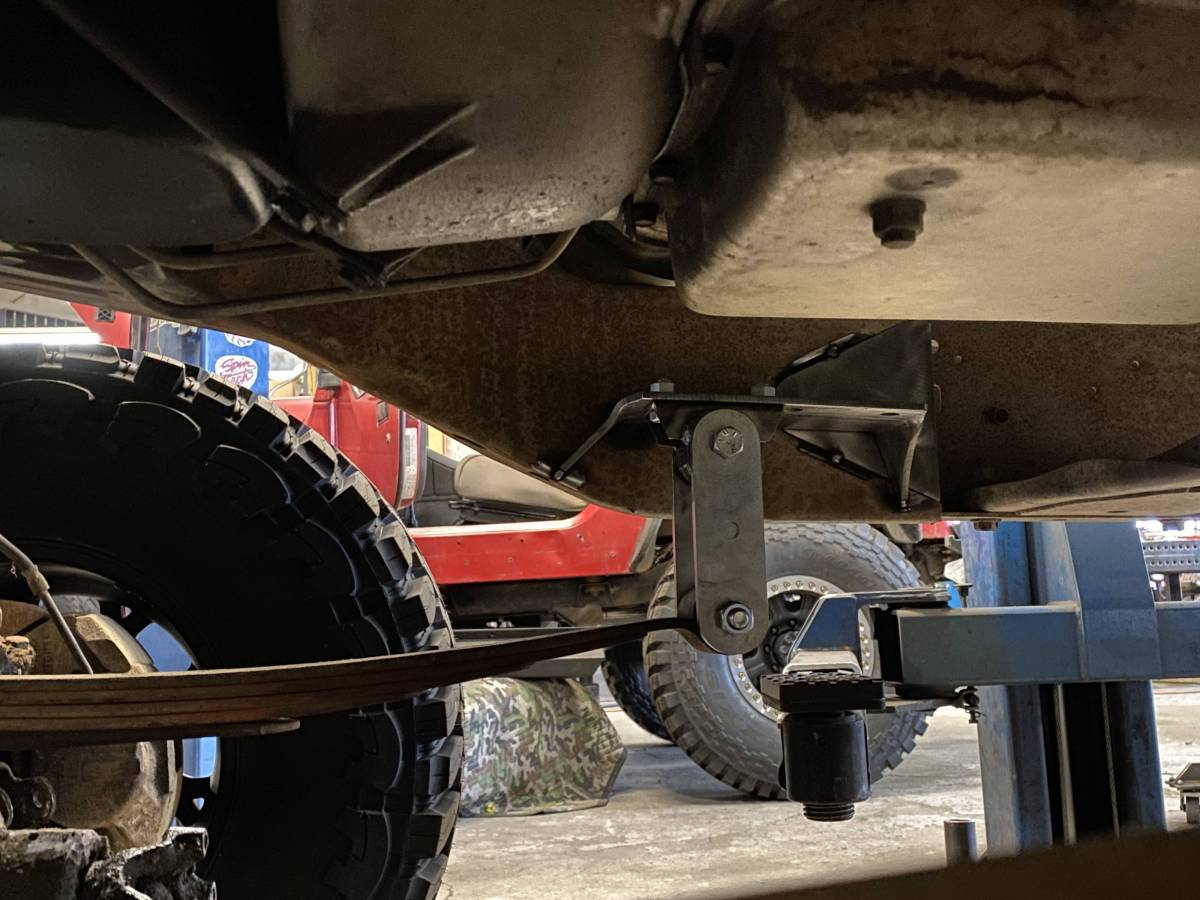

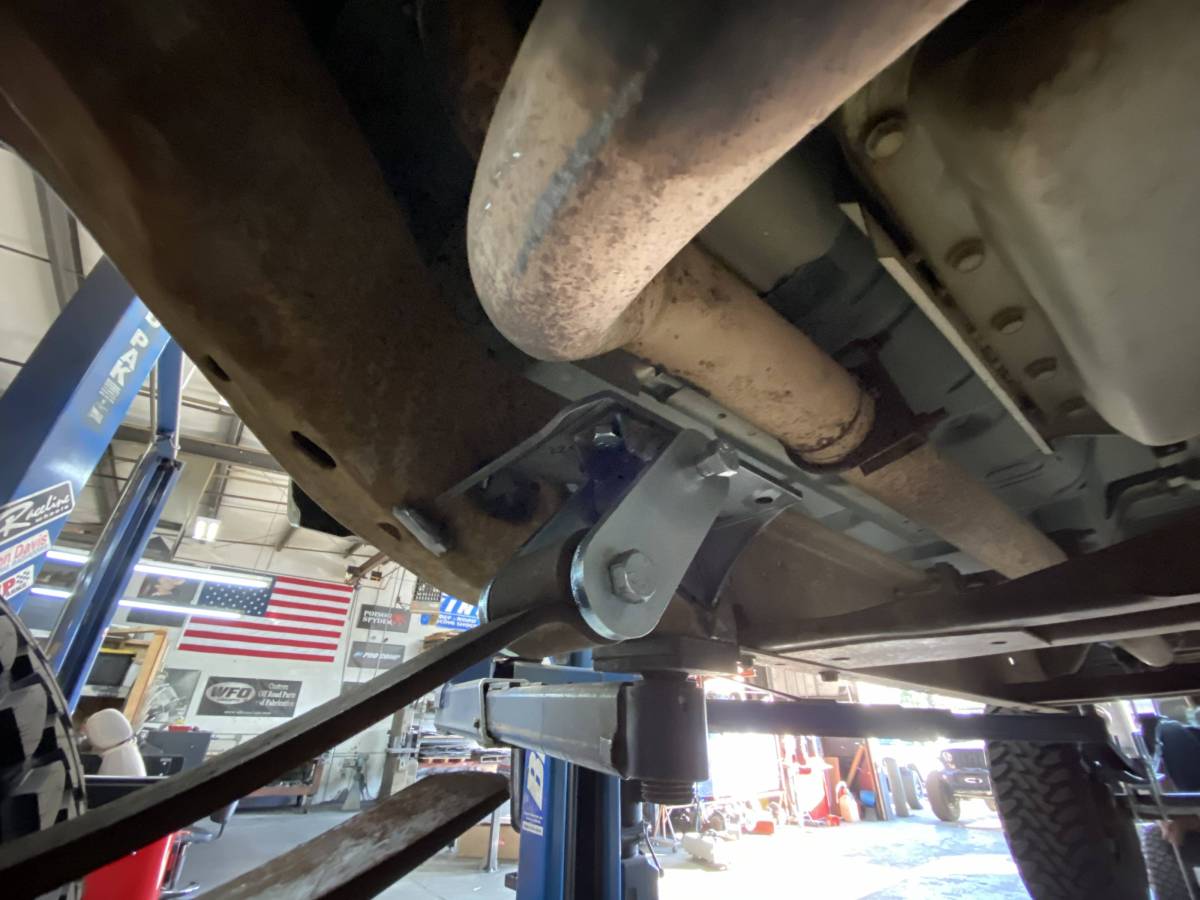

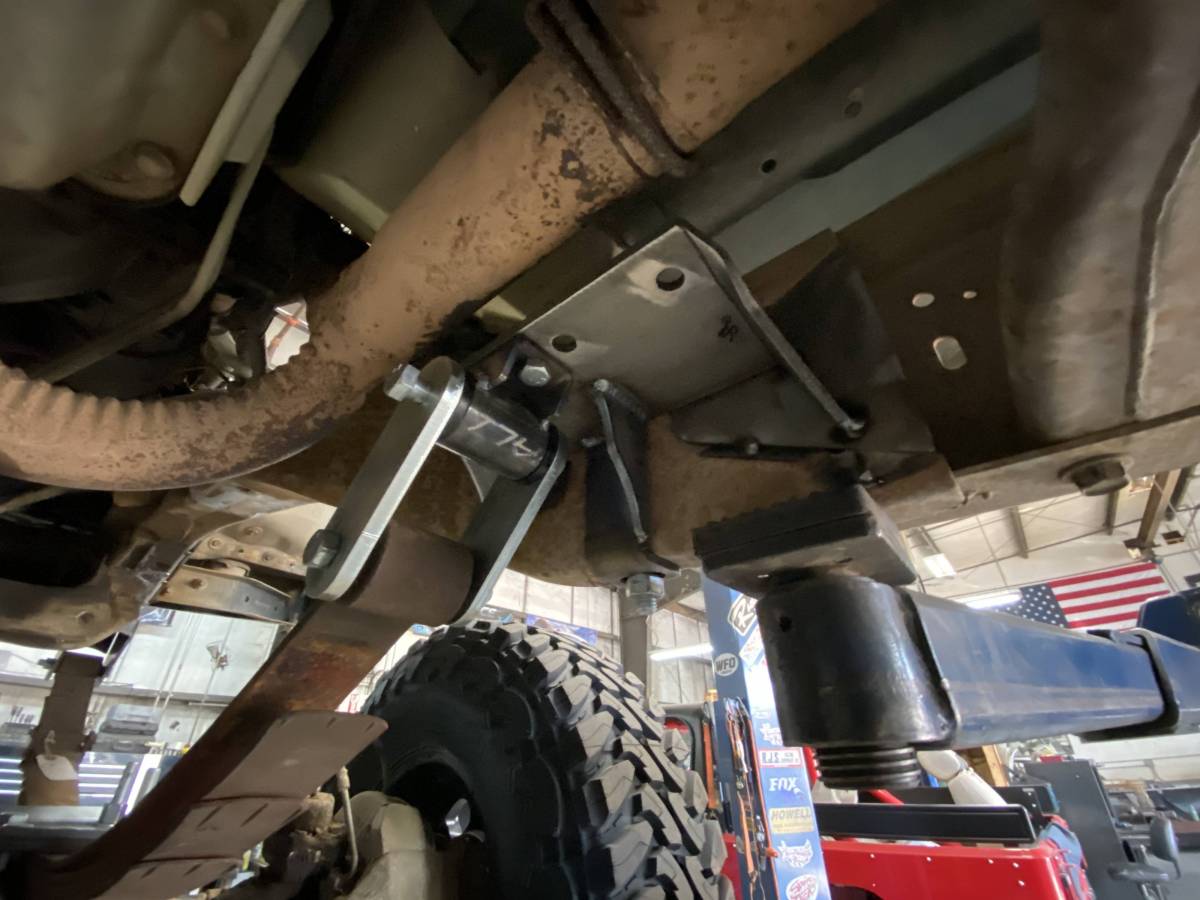

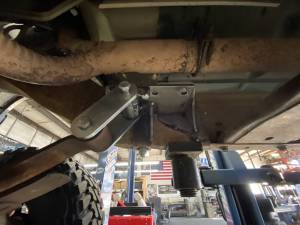

Once the frame hanger is installed on the frame, you have two different locations you can choose from to mount the shackle hanger depending on which leaf springs you are running.

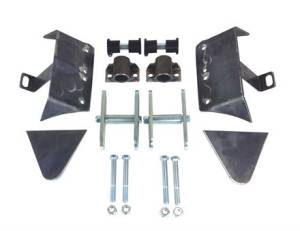

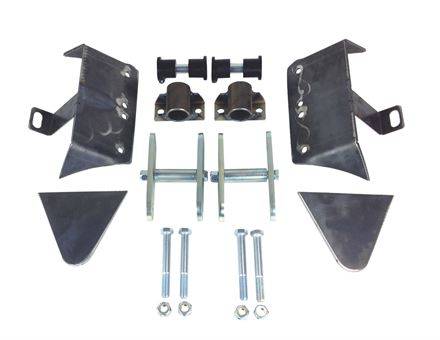

The kit includes:

  • The hangers for the inside of the frame
  • Shackle hangers for the leaf springs to be welded onto the frame mount with 1.5" bushings and a 9/16" sleeve
  • Set of 5" zinc plated shackles with a crossbar
  • Four 9/16" bolts to mount the shackles to the frame hanger and to the leaf springs



Welding required.

Only to be used with an axle that has a center perch width of 31.5".

This is the spring hanger we recommend using with this shackle hanger kit: WFO FBD-CHEVY-8898



This Kit includes:
WFO SH-CHEVY-8898-D: Chevy 88-98, Shackle Hanger Mount, Inside Frame, Rear of Front Axle -Driver Side (Qty: 1)
WFO SH-CHEVY-8898-P: Chevy 88-98, Shackle Hanger Mount, Inside Frame, Rear of Front Axle -Passenger Side (Qty: 1)
WFO SH-CHEVY-8898-FF: Chevy 88-98, Shackle Hanger Mount, Inside Frame, Rear of Front Axle -Frame Filler (Qty: 2)
WFO 206A: Shackle Hanger for 2.5" Wide Springs (Qty: 2)
DAY M02153BK: YJ Large Bushing, 1.5" OD, 3/4" ID - YJ Large Bushing, 1.5" OD, 3/4" ID (Qty: 4)
WFO 4261: 3/4" Bushing Sleeve, 9/16" Bolt - 3/4" Bushing Sleeve, 9/16" Bolt (Qty: 2)
WFO 6105-2: 5" Shackle Bar - 9/16" Bolt Hole (Qty: 4)
WFO 4263: Shackle Spacer (Qty: 2)
BOLT, 1/2-13 x 4.5": BOLT, 1/2-13 x 4.5" Grade 5 (Qty: 2)
NYLOCK, 1/2-13 GRADE 5: NYLOCK, 1/2-13 Grade 5 (Qty: 2)
BOLT, 9/16-12 x 5" Grade 8: BOLT, 9/16-12 x 5" Grade 8 (Qty: 4)
NYLOCK, 9/16-12 Grade 8: NYLOCK, 9/16-12 Grade 8 (Qty: 4)





Details

  • WFO SH-CHEVY-8898-KIT-5
  • WFO SH-CHEVY-8898-KIT-5
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 27.0 lbs.
  • W13.0000” x H10.0000” x L13.0000”
  • This item ships in its own box.
