Chevy Dana 60 Trail Repair U-Bolt Kit
Description

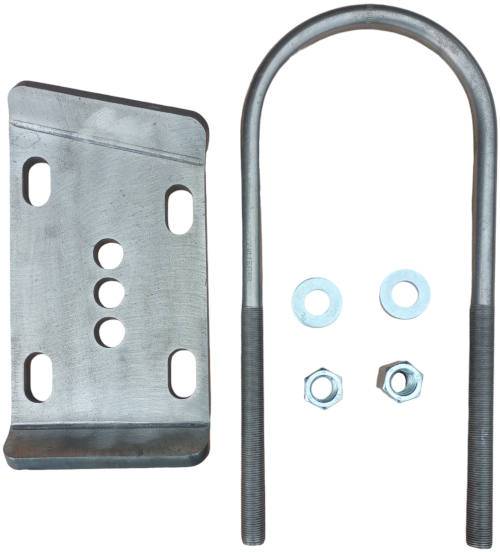

This is our Chevy Kingpin Dana 60 U-Bolt, Broken Stud, Broken Bolts Repair kit. This is for all of you customers that have broken the bolts or studs on the top of your Kingpin Dana 60 and have been stranded on the trail or in a mud hole! If you wheel a truck with a Kingpin Chevy Dana 60 front axle, you need to keep one of these in your tool box! The kit comes with one large 5/8" x 5"x12" long U-bolt, two high nuts and washers, and a custom top leaf spring plate to fit the u-bolt. You will need to make a small notch in the web of your front housing to keep the u-bolt from sliding over when you install it. The best way to get home after you screw up!
Warning: The u-bolt ends up directly in front of the diff cover bolts. Some aftermarket covers may make this kit a little harder to install. The u-bolt will need to be removed to remove your diff cover in the future. We suggest using this as a trail fix to get you home. Not a final fix. However, many people never go back to studs or bolts in the housing!
FOR TRAIL USE ONLY!
Not DOT Approved
Kit Includes:
WFO UB-013: 5/8-18 x 5" x 12" Round U-Bolt, Not Plated, TRAIL REPAIR ONLY (Qty: 1)
WFO 1796: Chevy Front Passenger, D60 Stud Delete Spring Plate, TRAIL REPAIR ONLY (Qty: 1)
HN-58F5Z: 5/8" High Nut (Qty: 2)
FWH-58F436Z: 5/8" Hardened Washer (Qty: 2)
Details
- WFO 1796-Trail Repair Kit
- WFO 1796-Trail Repair Kit
- WFO Concepts
- New
Shipping Information
- Item Requires Shipping
- 7.1 lbs.
- W6.5000” x H1.5000” x L14.0000”
