WFO Torque Arm Kit, 86-95 Toyota Rear Axle, Complete Kit With 4' Lower Tube

WFO Torque Arm Kit for 86-95 Toyota Rear Axle tube. This is a complete torque arm kit and comes wit a 4' lower tube. Every leaf spring vehicle we build at our shop ends up with one of these! This will keep you from getting axle wrap and bending your springs. The lower tube is 2"x.250" wall DOM, while the upper tube is 1.5"x.219" wall DOM. Both tubes are fish mouthed and ready to weld to the bushing sleeve at the axle. On the upper end, they are left long and can be cut to fit your application. The lower heim joint is a 1.25"x1" chromoly heim joint with our 9/16" high-misalignment spacers and tube insert. The upper heim is also a chromoly 3/4x5/8" heim joint with our tube insert. All bushing sleeves, bolts and shackle hardware are included.

This kit will require welding for installation. We do NOT supply the cross-member that the upper shackle will mount to. You will need to strengthen your stock crossmember, or build a new one. Keep in mind, the shackle can be mounted pointing up or down.

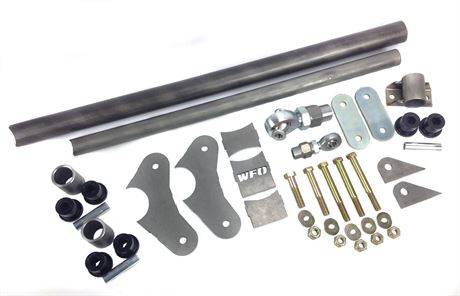

This Kit includes:
WFO TORQ 4: 2" x .250 Torque Arm, 4' long (Qty: 1)
WFO TORQ 3.5: 1.5" x .250 Torque Arm, 3.5' long (Qty: 1)
XMR16: 1.25" x 1" RH Male Heim Joint (Qty: 1)
WFO 1125-R: 1.25"-12 RH Threaded Tube Insert, 1.5" I.D. Tube (Qty: 1)
WFO 12512-R: 1.25"-12 Jam Nut, Right Hand - 1.25"-12 Jam Nut, Right Hand (Qty: 1)
WFO 5125-5625: 1" to 9/16" Stainless Steel High Mis-Alignment Spacer (Qty: 2)
WFO 5503: Torque Arm Bracket, 3.125" Dia. Tube (Qty: 1)
WFO 5508: Torque Arm Bracket, Toyota IFS (Qty: 1)
WFO 5601: Torque Arm Front Box (Qty: 1)
WFO 5606: Torque Arm Top Box, Toyota IFS (Qty: 1)
WFO 5607: Torque Arm Bottom Box, Toyota IFS (Qty: 1)
WFO 4250: 2.5" Bushing Sleeve, YJ Large - 2.5" Bushing Sleeve, YJ Large (Qty: 2)
WFO 4261: 3/4" Bushing Sleeve, 9/16" Bolt - 3/4" Bushing Sleeve, 9/16" Bolt (Qty: 3)
DAY M02153BK: YJ Large Bushing, 1.5" OD, 3/4" ID - YJ Large Bushing, 1.5" OD, 3/4" ID (Qty: 6)
WFO 206A: Shackle Hanger for 2.5" Wide Springs (Qty: 1)
WFO 5304: Triangle Tab with 5/8" Hole (Qty: 2)
WFO 1751-R: 3/4"-16 RH Threaded Tube Insert, 1" I.D. Tube (Qty: 1)
XMR10-12: 3/4" x 5/8" RH Male Heim Joint (Qty: 1)
WFO 3416-R: 3/4"-16 Jam Nut, Right Hand - 3/4"-16 Jam Nut, Right Hand (Qty: 1)
WFO 6103: Torque Arm Shackle (Qty: 2)
BOLT, 5/8-11 x 2.75" GRADE 8: BOLT, 5/8-11 x 2.75" GRADE 8 (Qty: 1)
WASHER, 5/8" GRADE 8: WASHER, 5/8" GRADE 8 (Qty: 2)
NYLOCK, 5/8-11 GRADE 8: NYLOCK, 5/8-11 GRADE 8 (Qty: 1)
BOLT, 9/16-12 x 4" GRADE 8": BOLT, 9/16-12 x 4" GRADE 8 (Qty: 1)
BOLT, 9/16-12 x 5" GRADE 8: Bolt, 9/16-12 x 5" GRADE 8 (Qty: 3)
WASHER, 9/16" GRADE 8: 9/16" SAE Washer, GRADE 8 (Qty: 8)
NYLOCK, 9/16-12 GRADE 8: NYLOCK, 9/16-12 GRADE 8 (Qty: 4)
