WFO Dodge Long Arm Builders Kit 2003-2009

Looking to improve the ride quality on your 2nd or 3rd Gen Dodge?  Then this kit is for you!

Our Dodge Long Arm Upgrade Kit is a DIY Builders kit.  There is welding and cutting required. Your frame factory mounts will need to be cut off so they do not interfere with the new links.  A new frame mount will be welded on further back on the frame.  The lower and upper links will possibly need to be cut and tube inserts welded into them.

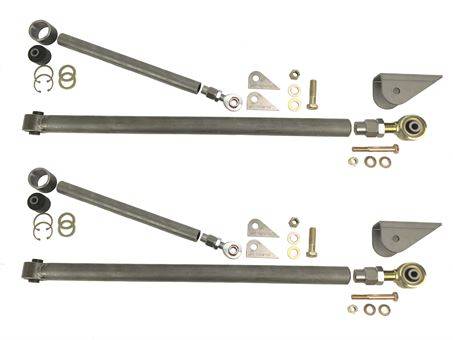

This is a radius arm style kit. The lower links are made out of 2" x .250 wall.  We are using rebuildable, bushing style joints at both ends of the lower link. We have intentionally left the lower link long so you can cut it to the desired length for lifted applications and tire clearance.

The upper links are made out of 1.5" x .250 wall.  They have a rebuildable bushing on the axle end and a heim joint for caster adjustability on the opposite end of the link that swings down and attaches to the lower link.  You will need to possibly cut the upper tube to proper length then weld the bushing ring and tube insert in place.

This kit can be used on stock to lifted applications.

The 1994-2002 trucks get straight lower links and the 2003-2009 trucks get bent lower links.

MADE IN THE USA!
