Front U-Bolt Kit With Spring Plates, 1971-1976 Dana 44, 2 3/4" Axle Tube

Dana 44 '71-'76 Front U-Bolt and Plate Kit, 2 3/4" Axle Tube

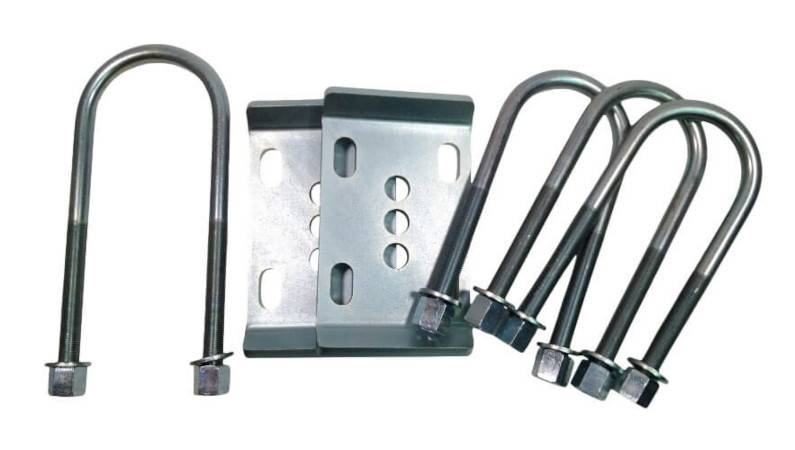

This is a U-bolt kit that will fit 1971 to 1976 Chevy Dana 44 front axles. These early year axles have 2 3/4" axle tubes. This kit comes with a pair of 2.5" silver zinc plated spring plates and four 5/8" U-bolts with nuts and washers. Three U-bolts are 2 3/4' x 8" and one of the U-bolts is 3 5/8" x 10". We also use this kit on early model high pinion Ford 44's and some Wagoneer axles.

Please measure to make sure you have a 2 3/4" axle tube!

This Kit includes:
WFO UB-001: 2.75” x 8” x 5/8” Round U-Bolt  (Qty: 3)
WFO UB-007: 3.625” x 10” x 5/8” Round U-Bolt  (Qty: 1)
HN-58F5Z: 5/8" High Nut  (Qty: 8)
FWH-58F436Z: 5/8" Hardened Washer  (Qty: 8)
WFO 1791: 2.5" Spring Plate, Universal, Chevy 44/10 Bolt Front  (Qty: 2)
