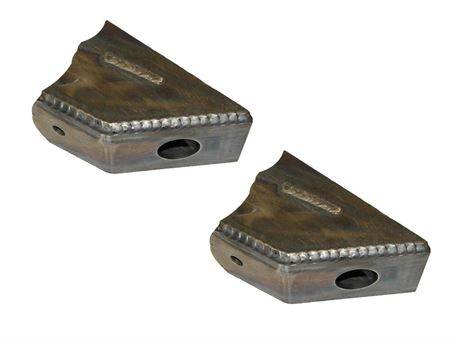

Inside Frame Link Mount for 1.25" Heim 10 Degrees Pair of Link Mounts 5/8" bolt hole

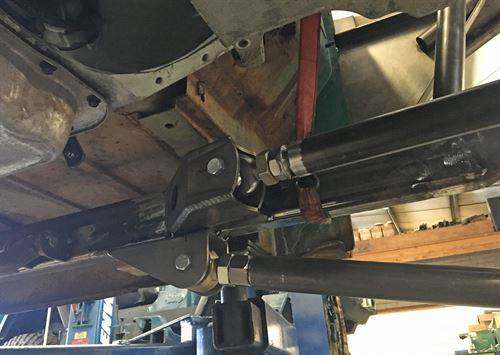

These link mounts work great for the upper link mount on front 3 link setups. They weld to the inside of the frame and have a 2.625" wide opening for a 5/8" bolt. We use these with 1.25" heim joints with 1" to 9/16" misalignment spacers. They are fully welded inside and out with 1/4" laser cut P&O steel. They have a 10 degree offset from the mounting surface.

MADE IN THE USA!

This Kit includes:
WFO 1933-10: Inside Frame Link Mount, 1.25" Heim, 5/8" Bolt, 10 Degrees (Qty: 2)
