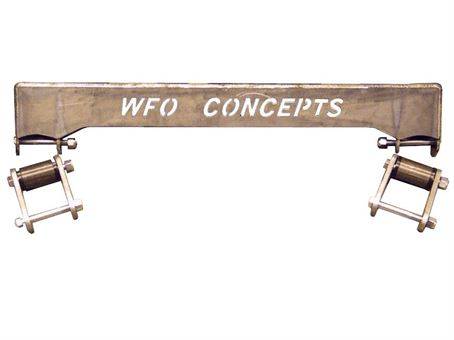

Jeep YJ Wrangler Shackle Reversal Kit With 6" Shackles

Jeep Wrangler YJ Shackle Reversal - This kit comes with everything you need for a shackle reversal on your YJ if you are a decent garage fabricator!   The front box drop bolts on using two of the factory bumper bolts.  The mounting holes are slotted to allow you to move your axle forward.  Once the location of the front box drop is determined, we suggest welding it on.  The kit is NOT bolt on.  The shackle sleeves must be drilled and welded through the frame.  This is much better than some other kits that bolt the shackles under the frame.  This helps keep your spring angles and suspension geometry better.   If you are running high-steer, we highly suggest buying the 1' forward steering box mount as well (see the suggested items for more info).  This will allow you to move the axle as far forward as possible!

The kit comes with 6" shackles.

This Kit includes:

WFO FBD-YJ: YJ, 87-95, 30.75" Wide (Qty: 1)
WFO 4250: 2.5" Bushing Sleeve, YJ Large - 2.5" Bushing Sleeve, YJ Large (Qty: 2)
DAY M02153BK: YJ Large Bushing, 1.5" OD, 3/4" ID - YJ Large Bushing, 1.5" OD, 3/4" ID (Qty: 4)
WFO 4261: 3/4" Bushing Sleeve, 9/16" Bolt - 3/4" Bushing Sleeve, 9/16" Bolt (Qty: 2)
BOLT, 9/16-12 x 5" GRADE 8: Bolt, 9/16-12 x 5" GRADE 8 (Qty: 6)
NYLOCK, 9/16-12 GRADE 8: NYLOCK, 9/16-12 GRADE 8 (Qty: 6)
WASHER, 9/16" GRADE 8: 9/16" SAE Washer, GRADE 8 (Qty: 12)
WFO 6106-2: 6" Shackle Bar - 9/16" Bolt Holes (Qty: 4)
WFO 4263: Shackle Spacer (Qty: 2)
BOLT, 1/2-13 x 4.5": BOLT, 1/2-13 x 4.5" Grade 5 (Qty: 2)
NYLOCK, 1/2-13 GRADE 5: NYLOCK, 1/2-13 Grade 5 (Qty: 2)
