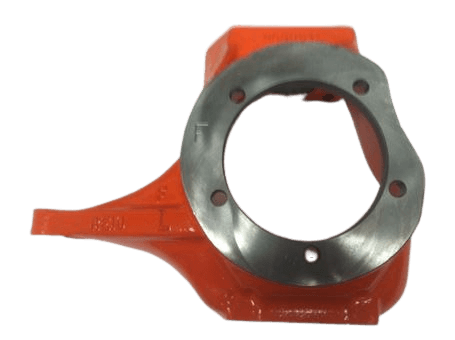

Ford Dana 60 Knuckle, Kingpin, Left, Reid Racing

D60001FL
Pricing: $499.00
Qty:

Description

D60001FL Reid Racing Ford Dana 60 Left hand kingpin steering knuckle. This is a heavy duty aftermarket knuckle that is "Made in the USA" by Reid Racing. It is cast thicker and stronger from high strength alloy steel. This knuckle fits all Ford kingpin dana 60 front axles from 1978 to 1991. This knuckle also has a 5th hole on the top of the knuckle for heavy duty aftermarket steering arms. The extra stud can add needed strength when using high-steer with larger tires or full hydraulic steering.

The factory tie-rod location is tapered to fit the stock Dodge and Chevy tie-rod ends, NOT Ford tie-rod ends. The knuckle is also a different shape than the stock ford knuckles. The arm for the factory tie-rod is cast lower than stock Ford, and is set up for the tie-rod to go from the top down, not the bottom up. It is basically a Chevy knuckle with 5 spindle studs to accept the Ford outers. Remember, if you buy only one side, you will not be able to match this knuckle up with another stock one if you want to run the tie-rod in the factory location.

This knuckle does not come with spindle studs. The factory Ford spindle studs can be re-used.



Left hand means Drivers side.



Details

  • D60001FL
  • D60001FL
  • Reid
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
