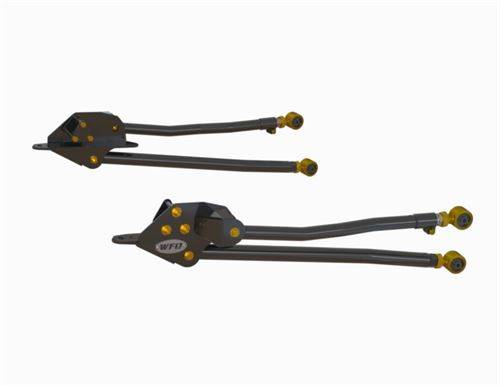

WFO Jeep JL 4 Link Long Arm Upgrade Kit
WFO Concepts 2018+ Jeep JL Long Arm Upgrade Suspension Kit.
This kit is designed for the driver looking to go to the extremes of off-roading while also improving the everyday ride quality of their Jeep! Add these fully adjustable heavy-duty links and custom bolt-on frame brackets to your 2018+ Jeep JL. These can be installed to keep your factory ride height or go bigger with up to 6” of overall lift. Our CAD designed bracket system and the CNC bent heavy duty links not only create a better ride but will give you the most suspension articulation of any kit on the market!
Please see description below for fitment and other important information.
Description
This kit will fit the following Jeep models only:
2018+ Jeep JL:
- I4-2.0L Turbo (Gasoline)
- I4-2.2L Turbo (Diesel)
- V6-3.0 Turbo Eco Diesel
- V6-3.6L Pentastar
- V8 392 (with modifications listed below)
Will not fit the 4xe platforms
Bracket Features:
- 100% Bolt-on, with no welding required.
- All CAD design, laser cut, CNC formed, and welded in the USA.
- Front 3-piece HD Crossmember has integrated lower link mounts that retain the utilization of:
- All factory transmission mounting bolt locations
- Frame mounting locations
- Skid plate mounting points
- Exhaust hanger brackets
- 3-piece HD Crossmember design allows you to remove the center section without removing your control arms for ease of maintenance to your drivetrain.
- Upper and lower link mounts are designed around factory suspension specifications in an effort to keep ride characteristics similar to stock.
- Inner frame link mounts are designed to fit around factory exhaust (except on V8 392 models) and driveline clearances.
- Rear frame link mounts integrate both upper & lower links into one, creating a simple and solid foundation for your Jeep suspension. *Note* - some frame mounted rock sliders will have to be modified enable to fit WFO rear link brackets.
Link Features:
- CNC formed links are designed to give you the most articulation while utilizing the factory axle link mounts, so as to avoid binding throughout the travel of your suspension.
- Lower Links are bent from 2” x ¼” wall DOM tube, to handle the abuse of any off-road tail.
- All control arms run a Duroflex joint that are self-centering by using a vulcanized elastomer enhanced with DuPont™ Kevlar® fiber. This provides incredible durability with more misalignment in the control arms and better vibration dampening than anything else available.
Warnings:
The installation of this kit will require the installer to cut the original link mounts from the front and rear of the frame.
Some aftermarket rock sliders will interfere with the rear link bracket and need to be modified.
On the V8 392 models only, extensive exhaust work will need to be done to fit the front crossmember.
* * This kit ships via flat rate truck freight.
* * In store pickup available - call to order.
MADE IN THE USA!
Kit Includes:
- WFO 8202 (WFO JLLA-RLM-KIT) - WFO Jeep JL Rear Link Mount Kit
- WFO 8203 - WFO Jeep JL/JT Crossmember Kit and Front Upper Link Mounts
- WFO 4110 - JT/JL Front Upper Long Arms, Pair
- WFO 4111 - JT/JL Front Lower Long Arms, Pair
- WFO 4120 - Jeep JL Rear Upper Adjustable Long Arms, Driver & Passenger
- WFO 4121 - Jeep JL Rear Lower Long Arms, Pair
Details
- WFO 8000
- WFO 8000
- WFO Concepts
- New
Categories
Shipping Information
- Item Requires Shipping
- $500.00
- This item will require a special quote for shipping charges.
- $500 Flat Rate Truck Shipping Only - or - Call to Order for Local Pickup
