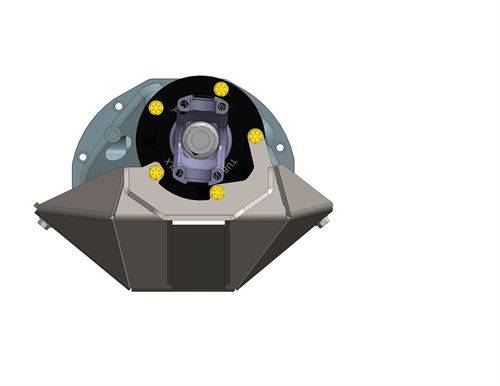

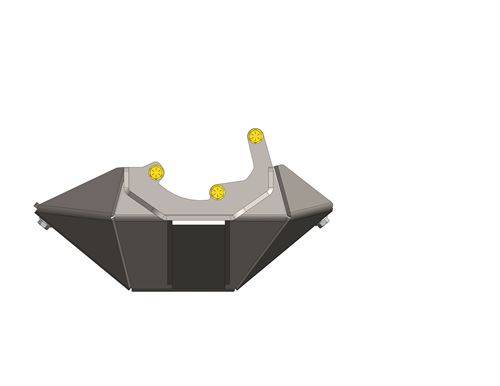

WFO 9"/10" LOW Pinion Diff Guard FLIPPED

This is made for rear engine cars running a low pinion 3^rd member upside down

• Can be used with the following 3^rd members:
  • Gearworks low pinion 3^rd member
  • Tubeworks CrossTie Billet low pinion 3^rd member (Main plate has clearance areas for the ribbed pinion flange)
  • Strange Engineering low pinion 3^rd member
  • Yukon Gear & Axle low pinion 3^rd member (might need a spacer due to thin pinion flanges)
  • Can also be used with combined companies
    • Gearworks 3^rd member with a Tubeworks pinion support
    • Strange 3^rd member with Gearworks Pinion Support
• Completely made from ¼” P&O steel and bottom plated with a strip of ¼” AR skid resistant steel
• Accepts up to a 1480 forged or billet u-joint style yolk or flange
• Bolts to the lower 3 bolts as well as 2 provided tabs you weld onto your housing
• From pinion mounting face to bottom housing flange is 5"
• Does not come with longer pinion bolts. You will need to source qty. (3) 1/4" longer bolts
• Product comes unpainted raw steel

NOTE: We manufacture this product in-house when you order it.  As such, it can take up to two weeks to ship.

MADE IN THE USA!
