Rear Axle Truss with Pinion Guard, Chevy Full Floating 14 Bolt 1973-2010

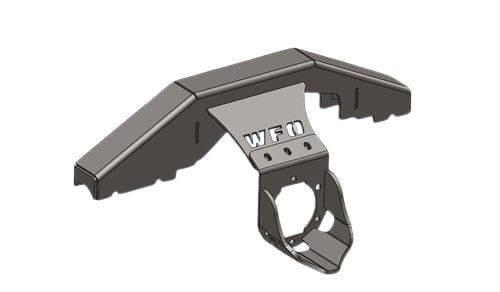

Chevy 14 Bolt Full Floater Truss with a Pinion Guard.

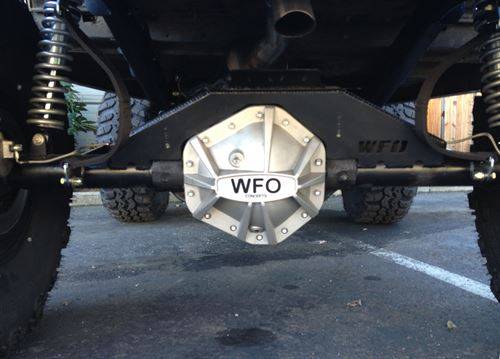

This truss is a perfect start to your rear link setup. It is narrow enough to fit on most leaf spring rear axles or rear axles that you will be using coil spring buckets on the axle.

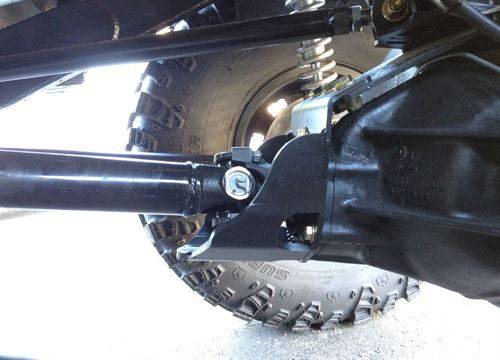

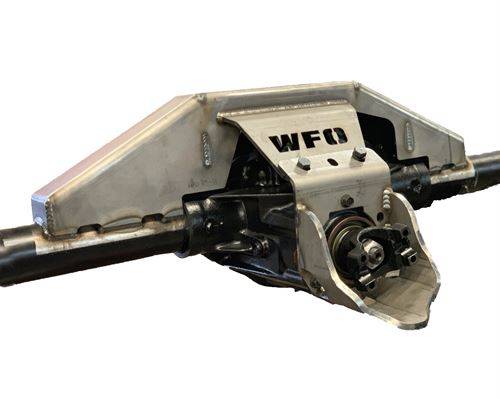

The truss is laser cut from 1/4" thick steel and comes welded together as you see in the picture. The curved pinion guard is made out of 3/8" thick steel. It also comes with longer pinion support bolts, and the necessary hardware to bolt the pinion support to the truss.

Fits 1973-2010 GM 14 Bolt full floating rear axles with a 10.5" ring gear.

Please Note: In order to assure a tight and low fit on a 1991-2010 newer ribbed housing, you will need to grind a few casting ribs off the top of your existing 14 bolt housing.

MADE IN THE USA!
